Samples
These samples illustrate some of the features that are described in detail in other sections of this document. They are taken directly from our live test system. (See also the ``Screenshots'' section for related illustrations.)
- The raw data directory where the incoming files are saved.
- The text directory where the text files processed by the rstfilter are saved.
- The rad directory where the radar images generated by the rstfilter are saved.
- The satellite images directory where the image files processed by the rstfilter are saved.
- The gempak data directory where the files processed by the gpfilter are saved in a format compatible with the gempak tools.
- The digatmos data directory where the files processed by the dafilter are saved, in a form suitable for import by the Digital Atmosphere program.
- The grib directory where the files processed by the gribfilter are saved, in a form suitable for use by GrADS. The gribfilter can in addition be configured to create plots automatically.
- Sample plots created with Gempak.
- Sample plots created with Digital Atmosphere.
- Sample plots created with GrADS or the TclGrads library.
- Sample plots created with the TclGempak library.
- The nexrad mosaics can be created periodically by the gpfilter.
- Sample plots and graps created wth Weatherscope.
- Sample hurricane tracks created with GrADS.

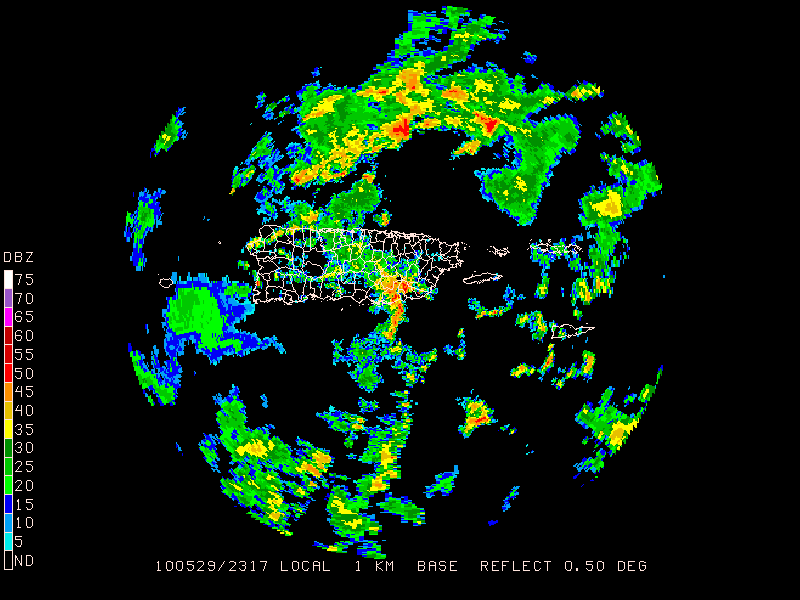

- Sample radar image created with nbspradmap.
