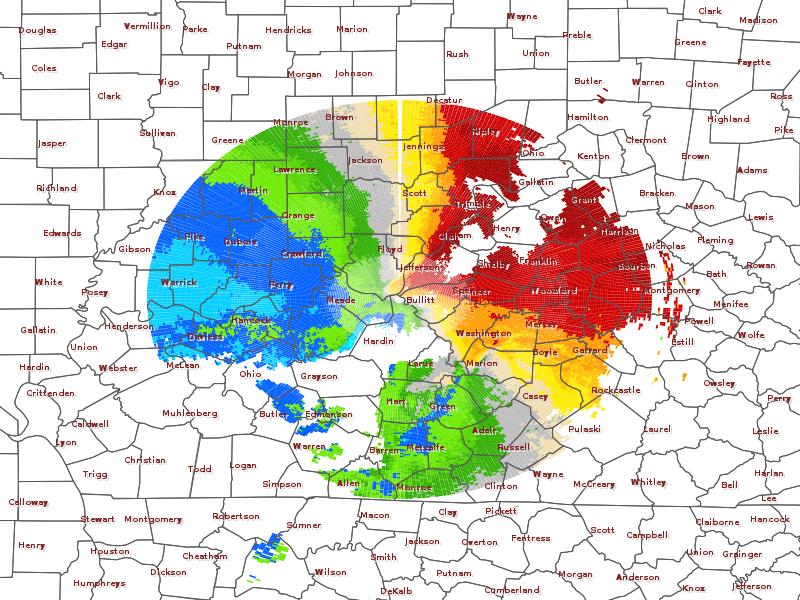

The following image is part of the nbspradgis-tutorial-n1v

The image was produced using the COMET CASE 044 base radial, 124 nmi range, 1.45/1.50 degree from LVX. This dataset contains the base radial, 124 nmi range, 1.45/1.50 degrees elevation angle data product archived from the LOUISVILLE, KY/Fort Knox LVX radar. Data are archived in the NIDS format.

The image was produced as folows:

• Convert the data,

      cp data/test-data/N1V_20021110_0814 data/n1vlvx.nids
      nbspunz -C data/n1vlvx.nids | nbspradgis -d data -n n1vlvx


• Create the image

      shp2img -m maps/n1vlvx.map -o ../img/n1vlvx.png


	knots
	RF
	+64
	+50-64
	+36-50
	+26-36
	+20-26
	+10-20
	+0-10
	0-10
	-10-20
	-20-26
	-26-36
	-36-50
	-50-64
	-64
	SNR < TH
